Assembly Visualizer

The Assembly Visualizer is a graphic processor used in the veHaaS Proxy to provide the user an abstracted image of an Assembly. The image for each Assembly is generated by the Visualizer every time the user is (re)loading the Assembly setup tab, or adapting the filter options, for example: ASSEMBLY-1011.

The generated image should help the user to see important information about the Assembly at a glance:

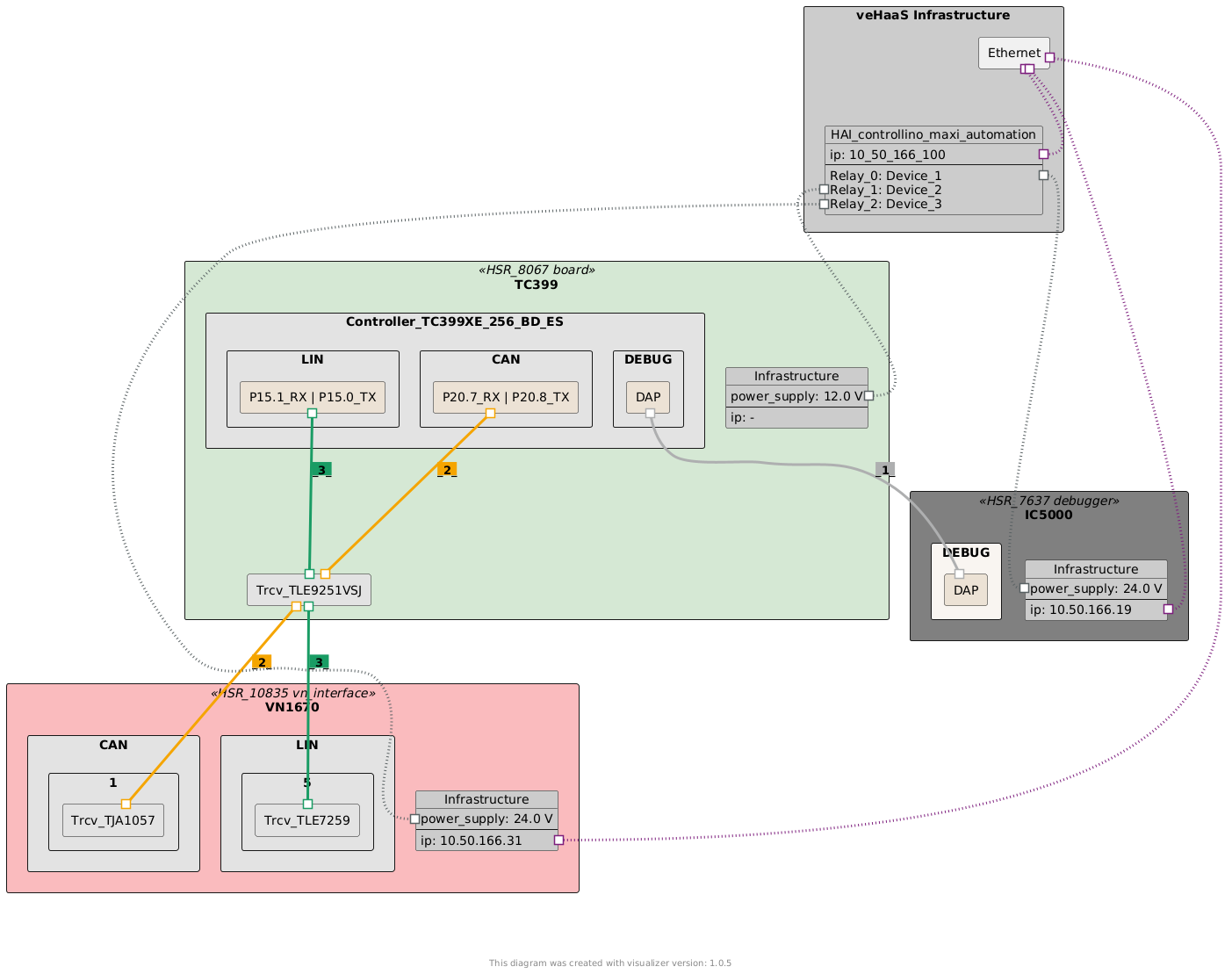

Assembly-1011

The Assembly Visualizer generates the image based on the Assembly Profile given informations. Therefore, only by the Assembly Profile provided informaton can be displayed in the generated image. If there are necessary information missing for a Assembly, like connections or port/pin informations, a update of a Assembly Profile can be requested in a TAR on our support page. Faulty visualization can also be reported here, as well as feature requests.

The scope of the generated image can be modified by the users to their needs via the provided filter options. Here the user can set which bus connections should be displayed or hidden, as well as which infrastructure elements, such as the power supply of the devices, should be displayed.
