To control (switch on/off) devices of an Assembly during C# test execution (with CANoe), a C# AssemblyManager implementation is available. The AssemblyManager mechanism is described in detail below.

Introduction / Motivation

Some test cases require Assembly devices to be switched on and off during test execution. Using the manager library enables the tester to easily manage and control the Assembly device without knowledge about access handling or REST specifics. Communication via HTTPS synchronizes the veHaaS Web UI Assembly device status as shown below.

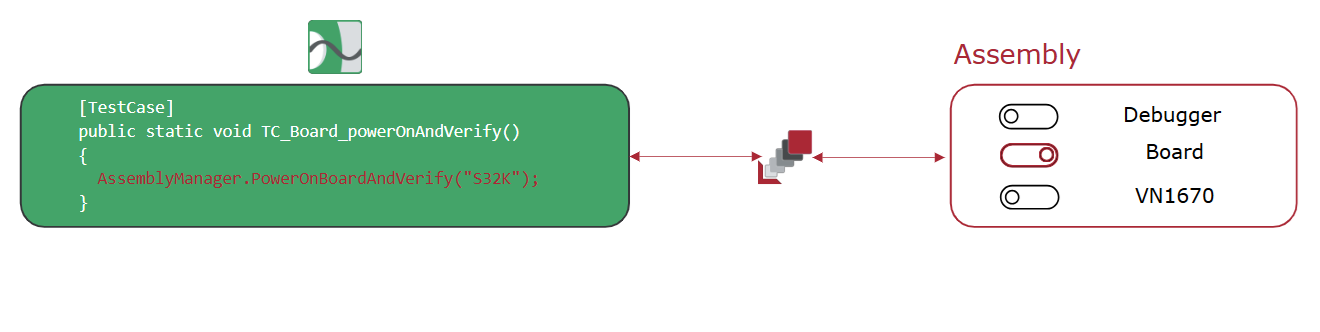

Managing Assembly devices during C#-Testexecution in CANoe

Integration

To control devices of an Assembly within the testers environment, some steps are necessary which are described below.

  1. Integrate the PES veHaaS Assembly Manager to your .NET test environment. Get the latest release from Artifactory pes-vehaas-assembly-manager artifactory repository.
  2. Place the files into your Testsuite in oder to use it during your Testcase Implementation (with vTESTstudio or Visual Studio).
  3. Enable CANoe to send HTTPS requests to the veHaaS Backend. CANoe Options -> Extensions -> Connectivity -> Enable HTTP Service
  4. Add HTTPAPI.vcdl and Serialization.vcdl to your CANoe configuration via Simulation -> Communication Setup -> Data Source -> Load Data Source.
  5. Within Assembly_User.cs the tester is supposed to make parameter adjustments.
  6. (Mandatory) Add your veHaaS Token VEHAAS_TOKEN to get control access rights during test execution.

    💡 If you are using this Testsuite in your team, you can also use a team token Access Token.

  7. (Optional, but recommended) Downloads JSON Assembly description file (veHaaS Assembly -> Assembly Setup -> Download). After downloading reference the file for ASSEMBLY_DESCRIPTION_FILE_PATH. Recommended: Next to HTTPAPI.vcdl.

More information can be found on Gitlab pes-vehaas-assembly-manager.

veHaaS AssemblyManager public interfaces (API)

The AssemblyManager provides functionality to control your Assembly during test execution.

💡 Tip: Each PowerOn... and PowerOff... method has a corresponding PowerOn...AndVerify() or PowerOff...AndVerify() variant, which performs the action and verifies its success.

Method Description Parameters Return Type
PowerOnAssembly() Powers on all Assembly devices. None void
PowerOffAssembly() Powers off all Assembly devices. None void
PowerOnBoard(string name = null, int? id = null) Power on veHaaS Assembly board. name (optional) - Name of the board
id (optional) - ID of the device		 void
PowerOffBoard(string name = null, int? id = null) Power off veHaaS Assembly board. name (optional) - Name of the board
id (optional) - ID of the device		 void
BoardPowerCycle(int waitDuration, string name = null, uint? id = null) Powercycle veHaaS Assembly board. waitDuration - Duration to wait between power on and power off [ms]
name (optional) - Name of the board
id (optional) - ID of the device		 void
PowerOnDebugger(string name = null, int? id = null) Power on veHaaS Assembly Debugger. name (optional) - Name of the debugger
id (optional) - ID of the debugger		 void
PowerOffDebugger(string name = null, int? id = null) Power off veHaaS Assembly Debugger. name (optional) - Name of the debugger
id (optional) - ID of the debugger		 void
PowerOnGenericDevice(string name = null, int? id = null) Power on any generic veHaaS Assembly Device. name (optional) - Name of the device
id (optional) - ID of the device		 void
PowerOffGenericDevice(string name = null, int? id = null) Power off any generic veHaaS Assembly Device. name (optional) - Name of the device
id (optional) - ID of the device		 void
SetMuxConnection(uint mutually_exclusive_block_id = 0, uint active_connection_id = 0) Set multiplexer channel. mutually_exclusive_block_id - block ID
active_connection_id Active connection ID		 void
Info methods
GetAssemblyOverview() Provides information about connected Assembly devices. None void
GetAssemblyHais() Gets all HAIs which are part of veHaaS assembly. None void
GetAssemblyDevices() Gets all veHaaS Assembly devices. None void

Example

/* Simple Testcase controlling an Assembly. */
public void TC_Example_TestCase()
{
  /* Switch the Board to ON. */
  AssemblyManager.PowerOnBoardAndVerify("S32K");

  ...

  /* Switch the multiplexer with ID = 0 to the dedicated connection 3. */
  uint mutually_exclusive_block_id = 0;
  uint active_connection_id = 3;
  AssemblyManager.SetMuxConnection(mutually_exclusive_block_id,active_connection_id);

  /* Power off the Assembly. */
  AssemblyManager.PowerOffAssembly();
}
