Upload an Assembly Profile

To upload an assembly profile, you can use the assembly upload dialog. There are multiple ways to access this dialog:

1. From the navigation bar:

The assemblies view can be accessed from the Create-Menu in the navigation bar.

  • Click on the icon in the navigation bar
  • Select the Create Assembly button in the dropdown

navbar-assembly-create-button

Create Assembly Button

2. From the Assemblies view

The assemblies view can be accessed from the top level of the explorer, organization and groups level, depending the scope you would like to create the assembly.

  • Navigate to the Assemblies view in the explorer
  • Click the Create button.

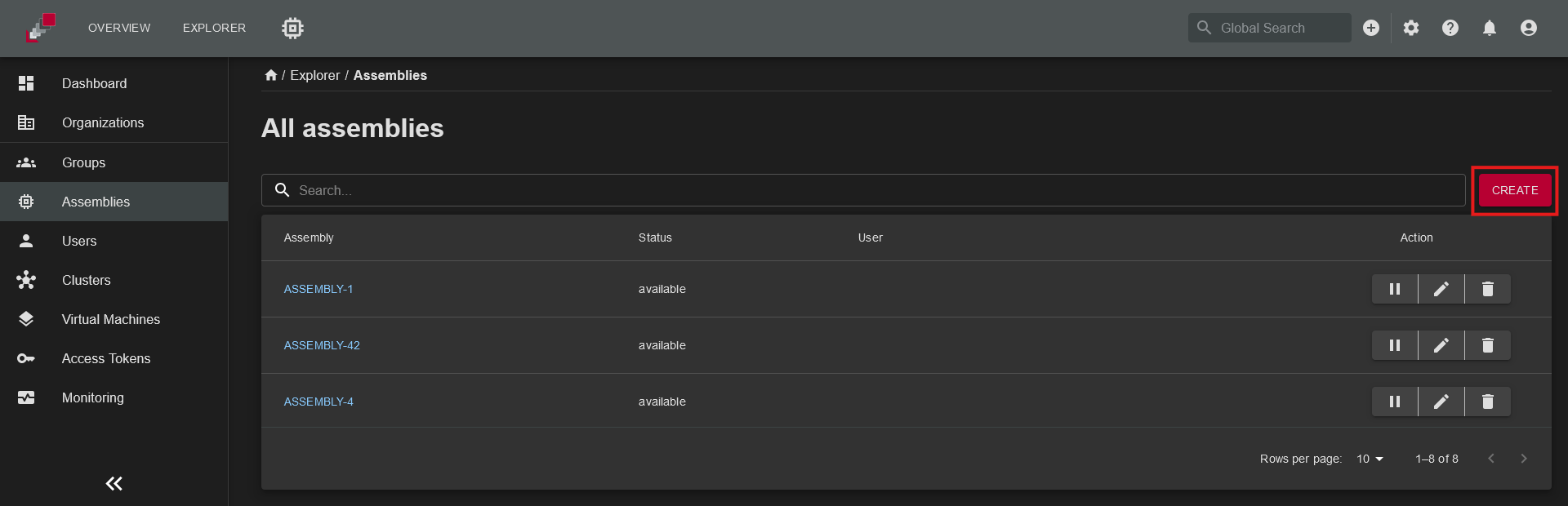

explorer-assembly-create-button

organization-assembly-create-button

group-assembly-create-button

To upload a new assembly profile, follow the steps in the assembly upload dialog. The dialog window consists of a sequence of steps you can navigate through using the "next" and "back" button on the bottom right.

Upload an Assembly Profile

Choose the assembly profile JSON file you want to upload using one of the following methods:

  • Click on the upload form to open a file selection dialog and choose the file path.
  • Drag and drop the assembly profile JSON file into the upload form.

If you accidentally select the wrong file, you can remove it by clicking the delete button or overwrite it by selecting a new file.

create-assembly-upload-profile

Share Assembly

Specify who can access the assembly:

  • Share the assembly by assigning it to specific organizations or groups.
  • Enable Public in Organization to make the assembly visible to all members of the assigned organization without requiring group membership.

(Organization and Visibility Structure)

create-assembly-share-assembly

Screenshot may be outdated

The assembly creation dialog was redesigned in v2.5.0. The screenshot above may not reflect the current UI.

Assign Assembly Owners

Define who is responsible for managing and maintaining the assembly profile by assigning assembly owners.

create-assembly-ownership

Assign a Virtual Machine

Assign a virtual machine to the assembly. Without a virtual machine, the assembly cannot be accessed.

create-assembly-virtual-machine

Assign the Assembly to a Cluster

Assign the assembly to a cluster. If no cluster is assigned, the assembly will be set to the status On-Stock. This means the hardware setup cannot be used because it is assumed that it's currently not connected to a server rack.

A cluster is a server rack with network connections, server connections, and a central power supply unit that hosts multiple assemblies.

create-assembly-assign-cluster
